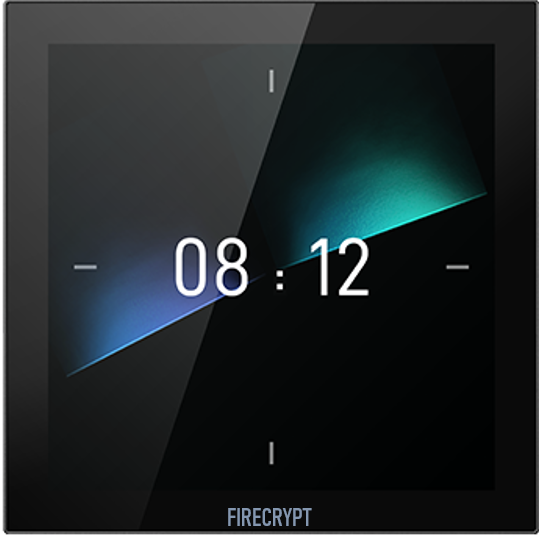

| Ürün Modeli | Magicpad 2 mini Pro |
| Ürün Formu | 4-inch central control panel with dual microphone |
| Color | Black & White |
| Screen type | 1280*800 |
| Viewing Angle | Ultra-wide angle 180°, full-view screen |
| Operating system | Android 10 |
| Gateway | built-in gateway |
| Relay | 2 relays, resistive 1000W/channel, capacitive 500W/channel |
| Main Processing Model Brand | silicon Lbs，px30 |
| Storage | 2G+8G |
| Trumpet | High quality, 1.5W |
| Touch | Five-point touch, multiple gesture control |
| Communication | WiFi, Zigebee, Bluetooth, 485 |
| Sub-device capacity | up to 200 sub-devices can be connected |
| Power supply | AC110-240V 50-60Hz |
| Material | V0 flame retardant material, UL94 standard |
| Screen technology | AF anti-fingerprint coating, anti-fingerprint |
| Installation | 86 box bottom installation, snap-on structure surface installation |
| Wood opening size | Single: 71 horizontal * 66 vertical; Double: 157 horizontal * 66 vertical; Triple: 243 horizontal * 66 vertical; Quadruple: 329 horizontal * 66 vertical |
